1.Features: 12 inches highlight touch screen and

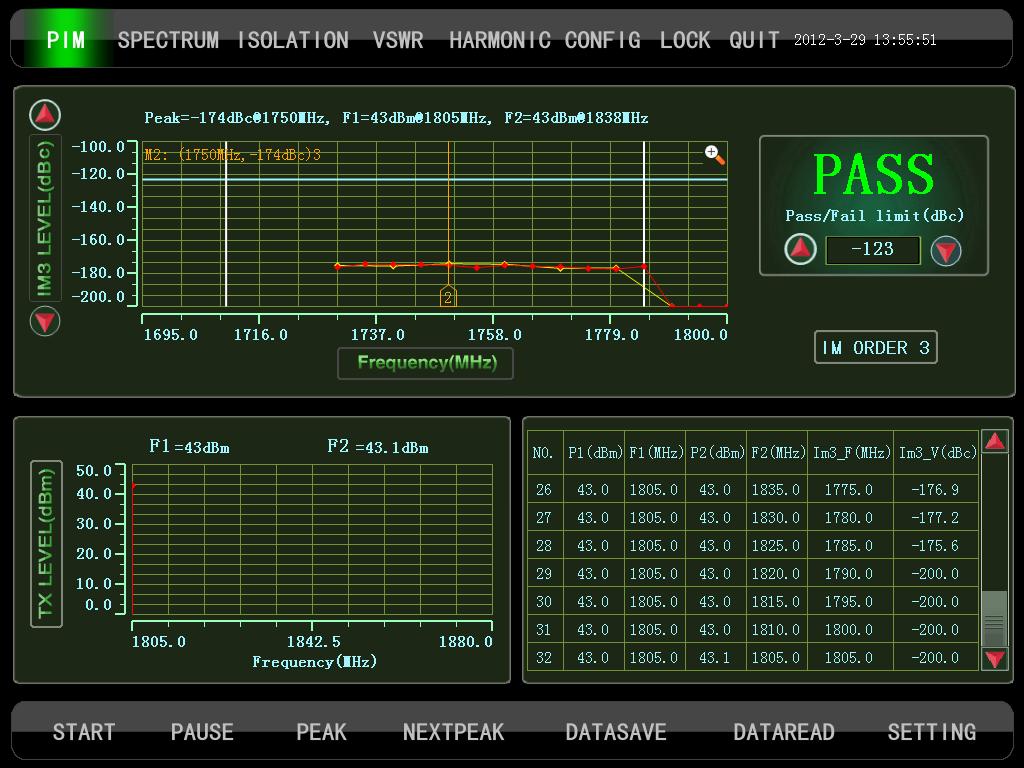

easy to operate | Ideal site testing tools with complete function | Lithium battery inside for spectrum testing | Supports data playback,stored and generate reports | Supports frequency sweep and time sweep test mode | Supports PDF,JPG and CSV format test report |
2.Specifications: 2.1 Products: Models | Telecommunications
standerd | Transmit
Band | Receive
Band | JCIMA-800-P | CDMA | 869 – 894 MHz | 824 – 849 MHz | JCIMA-900-P | GSM | 930 – 960 MHz | 885 – 915 MHz | JCIMA-1800-P | DCS 1800 | 1805 – 1880 MHz | 1710 – 1785 MHz | JCIMA-1900-P | PCS 1900 | 1930 – 1990 MHz | 1850 – 1910 MHz | JCIMA-2000-P | WCDMA | 2110 – 2170 MHz | 1920 – 1980 MHz |
2.2 General specifications: ` | PIM,Spectrum,Isolation,VSWR/RL | Operation System | Windows XP Embedded | Testing Software | PIMinstrument | Display | Card12"Touch Screen | Memory Card | 2GB DOM | RF Interface | 1×N(F) 1×DIN(F) | Expand Interface | 1×USB 1×VGA | Radiator | Internal Fans | Dimensions | 390mm×300mm×165mm | Weight | 12Kg | Main Power | AC220v±10%,50Hz | Power Consuption | 300W |
2.3 PIM: Measurement Method | Reverse(Reflected)PIM:3rd,5th,7th 9th order | Measurement Mode | Frequency Sweep and Time sweep | Output Power | 2×20W(+33 to +43dBm) | Power Accuracy | ±0.35 dB | Residual Intermodulation | < -160 dBc(-117dBm) | Frequency Increment | 100KHz | Frequency Accuracy | < ±4ppm | Warm-up Time | 3 minutes |
2.4 Spectrum: Frequency Range(MHz) | Wide Band | 100 kHz to 3 GHz | Narrow Band | CDMA/GSM/DCS/ WCDMA (Uplink) | Resolution Bandwidth | 4,20,and 100 kHz | Aveage Display Noise Level | –125 dBm Typ. (ATT = 0 dB RBW = 1 kHz Input: 50Ω ) | Measurement Uncentainty | ≤1dB, 0.5 dB Typ. | Measurement Dynamic Range | 75dB | Maximum Input Level | 0 dBm(Average continued)+20dBm(Peak pulse) | Scanning Time | 1 ms to 5 s | RF Attenuator | 0 to 40 dB in 10-dB step | Marking Method | Label peak | Label next peak | Max hold |
2.5 Isolation: Frequency Range(MHz) | CDMA/GSM/DCS/PCS/WCDMA (Downlink) | Output Power | +30 to +43dBm | Isolation | -120 to 0dB | Scanning Mode | Time Domain | Resolution Power | 0.1dB |
2.6 VSWR/Return Loss: VSWR | 1.10 to 20.00 | Return Loss | 1.00 to 25.00dB | Scanning Time | 2s | Anti-interference | +10dBm | Resolution Power | 0.01 or 0.01dB |
2.7 Environmental: Operating Temperature Range | -10°C to +40°C | Storage Temperature Range | -20°C to +60°C | Ingress Protecton(IP) | IP21 | Relative Humidity | 5% to 95%(RH non-condensing) | Mechanical shock | 6G/40G |
|
