1、Part Number: 2、Product Type: JCPOI-12I4O-02-R1A 3、Technical Data: System/Band (MHz) | CDMA800-GSM900 | 806-960 | GSM1800 | 1710-1880 | UMTS2100 | 1920-2170 | Input Ports Number | CDMA800-GSM900: 4 GSM1800:4 UMTS2100:4 | Output Ports Number | 4 | Insertion Loss (dB) | 8.0 | VSWR ( Input port ) | 1.3 | Isolation (dB) | between same systems | 25 | between different systems | 50 | PIM3 (dBc) | ≤-150dbc@2*43dbm | Maximum input power/port (W) | 100W | Impedance (Ω) | 50 | Connectors | DIN-F | Dimensions(mm) | 19inch | Weight (kg) | 20kg | Ingress Protection | / | Temperature Range (℃) | -30 - +70 |

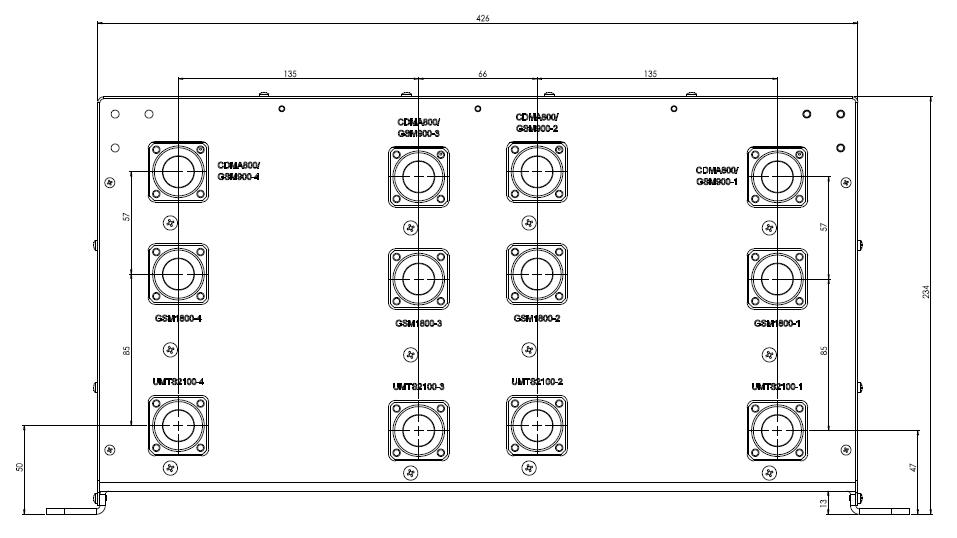

4、Outline Drawing:
|
